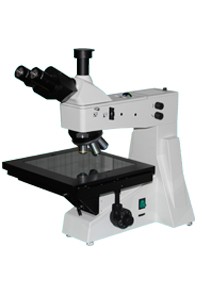

XJL-302 DIC
XJL-302 DIC differential interference contrast microscope is suitable to observe many different kinds of object. It is equipped with transmitted
illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It
provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography,
mineralogy, precision engineering, electronics, etc.
-
Features
Excellent UIS optical system can obtain excellent optical performance.
Compact and steady main frame body is embodiment for the shock resistance.
<>▲▲▲
Eyepiece
10X Wide-field plan eyepiece£¬field of view number Ф18mm
Objective (Infinity and long working distance plan achromatic objective)
Type
Magnification
Number aperture
Working distance (mm)
Thickness of cover glass (mm)
Remark
Bright Field objective
5X
0.12
26.1
0
XJL-302DIC
10X
0.25
20.2
0
20X
0.40
8.8
0
40X
0.60
3.98
0
80X
0.80
1.28
0
Eyepiece tube
Inclination of 30˚ and interpupillary distance is 53~75mm
Focusing system
Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 0.8μm
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage
Mechanical stage£¬size：280mmX270mm£¬moving range: 204mmX204mm
Polarization Unit
Polarizer enable 360°rotate and switched in or out
Analyzer can be switched in or out
Light source
12V50W halogen, brightness enable control
DIC observation system
10XDIC push-pull group
20XDIC push-pull group
Optional accessories
|
name
|
Sort/Technique parameter
|
NO.
|
|
Eyepiece
|
Dividing eyepiece(field number:¦µ18mm) 0.10mm / Div
|
1121010
|
|
Objective
|
Magnification
|
Number aperture
|
Working distance (mm)
|
Remark
|
|
|
50X
|
0.70
|
3.68
|
Bright field
|
2260150
|
|
60X
|
0.75
|
1.22
|
2260160
|
|
100X(Dry)
|
0.85
|
0.40
|
2260111
|
|
Stage
|
Mechanical stage, size: 250mmX230mm, moving range:154mmX154mm
|
040018
|
|
CCD adapter
|
0.5X
|
812004
|
|
1X
|
812002
|
|
0.5X with dividing 0.1mm/Div
|
812003
|
|
Camera
|
DV-1(with USB and Video output )
|
800001
|
|
DV-2(with USB output )
|
800003
|
|
DV-3(with Video output )
|
800005
|
|
Digital Camera Adapter
|
CANON(EF) NIKON( F)
|
820001
|
