Metallurgical Microscope 금속 현미경 관리자에게 문의하여 주세요


주문수량

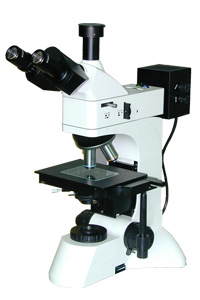

L3230

  • L3230 reflected and transmitted microscope is suitable to observe surfaces of non-transparent object or transparent
    object.It is equipped with vertical illuminator, infinity plan achromatic objectives with long working distance (no cover
    glass), wide-field eyepieces and set polarizer device in trinocular. It provides clear and high-contrast image, beautiful
    sculpt,convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy,
    precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and
    factory.

    Features

    With infinity plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces,
    can get clear pictures and wide view field.

    Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    .
    Movement of stage: 30mm

    With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent
    object.

    Trinocular, can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular
    eyepieces or to the top port.

    Standard Configuration



Model
L3230
Eyepiece
Wide field WF10X(¦µ22mm)
Objective
Infinity plan achromatic objectives with long working distance (no cover glass)
PL L5X/0.12(Work distance):26.1 mm
PL L10X/0.25(Work distance):20.2 mm
PL L40X/0.60£¨Spring£©(Work distance):3.98 mm
PL L60X/0.70£¨Spring£©(Work distance):3.18 mm
Eyepieces tube
Trinocular inclined 30˚, can be shot in 100% light flux.
Epi- illumination system
6V 30W, halogen lamp, adjustable brightness
Integrated field diaphragm, aperture diaphragm and filter switching device. Push-pull type analyzer and polarizer
Focus system
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage
Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
Transmitted illumination
system
Abbe condenser NA.1.25 Rack & pinion adjustable
Blue filter and Ground glass
Collector for illumination with halogen lamp (With field diaphragm )
6V 30W halogen lamp, adjustable brightness




Optional accessories



Name
Sort/Technique parameter
NO.
Eyepiece
Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div
1122010
Objective
Infinity plan achromatic objectives with long working distance (no cover glass)

PL L 20X/0.40(Work distance):8.80mm
2260120
PL L50X/0.70£¨spring£©(Work distance):3.68 mm
2260150
PL L80X/0.80£¨spring£©(Work distance):1.25 mm
2260180
PL L 100X/0.85£¨spring£©£¨Work distance£©:0.4mm
2260111
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©
800001
DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©
800003
DV-3 With video output£¨380/520 TV line£©
800005
Digital camera adapter
CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F)
820001
