L3003

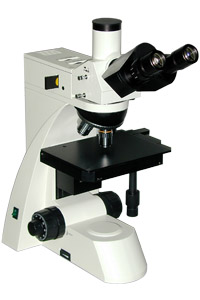

L3003 reflected metallurgical microscope is suitable to observe the surfaces of non-transparent object. It is equipped with vertical
illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in
trinocular. It provide clear and high-contrast picture, beautiful sculpt, convenient operation, etc. It is the ideal instruments for research
work in metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in
the colleges and factory.
Features
With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide
view field.
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
6V 20W halogen lamp, adjustable brightness.
Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.
Standard Configuration
|
Model
|
L3003
|
|
Eyepiece
|
Wide field WF10X(¦µ18mm)
|
|
Objective
|
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70
|
|
Eyepieces tube
|
Trinocular,Inclination of 30˚, (Analyzer with field diaphragm to switch)
|
|
Vertical illumination unit
|
6V 20W, Halogen lamp,Adjustable brightness
|
|
Vertical illumination With field diaphragm ,aperture diaphragm and polarizer,(Y,B,G)filter and Ground glass
|
|
Focus system
|
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
|
|
Nosepiece
|
Quadruple Backward ball bearing inner locating
|
|
Stage
|
Double layer mechanical ( Size: 210mmX140mm,movingrange:75mmX50mm)
|
Optional accessories
|
Name
|
Sort/Technique parameter
|
NO.
|
|
Eyepiece
|
Wide field WF16X(¦µ11mm)
|
1051016
|
|
Dividing 10X(¦µ18mm) 0.1mm/Div
|
1121010
|
|
Objective
|
Plan achromatic objectives with long working distance (no cover glass) PL L 40X/0.60
|
2250140
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring)
|
2250160
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80
|
2250180
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)
|
2250111
|
|
Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring, oil)
|
2240111
|
|
Nosepiece
|
Quintuple Backward ball bearing inner locating
|
|
|
CCD adapter
|
0.4X
|
|
|
0.5X
|
|
|
1X
|
|
|
0.5X with dividing 0.1mm/Div
|
|
|
Camera
|
DV-1 With USB & video output
|
|
|
DV-2 With USB output
|
|
|
DV-3 With video output
|
|
|
Photo unit
|
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
|
|
|
4X Focusing photograph attachment
|
|
|
MD Adapter
|
|
|
PK Adapter
|
|
|
Digital camera adapter
|
CANON(A610,A620,A630,A640)
|
|
|
