Flourescence microscope 현미경 관리자에게 문의하여 주세요


주문수량

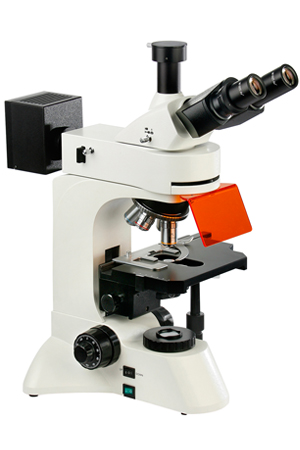

L3201-LED

L3201 LED Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with no
magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear picture and
wide view field. The transmitted and epi-fluorescent illumination light source are high power & brightness LED, but power consumption is
lower and use life longer, very good radiating heat effect. Safely and comfortably using the instrument, the cost of use and maintenance
are more lower. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research,
universities, medical treatment, epidemic prevention etc.

Features

Adopt infinity optical system and modularization function design.

Equipped with infinity plan achromatic fluorescent objectives, enable obtain more clearer and brighter image.

Wide-field plan eyepieces: field number Ф22mm.

Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm

Transmitted illumination: 3W high brightness white LED, brightness adjustable.

Epi-illumination: 3W high brightness monochromatic LED, enable changing for different wave length LED, but the brightness can't be
adjustable.

Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.

Wide voltage range power supply (85-265V 50/60Hz).


Standard Configuration
Model
L3201 LED
Eyepiece
Wide field WF10X(¦µ22mm)
Objective
Infinity plan achromatic objectives
PL 4X/0.10 (Work distance):19.8 mm
PL 10X/0.25 (Work distance):5.0 mm
PLF L40X/0.85£¨spring£© (Work distance):0.42 mm (No magnification spherochromatic aberration )
PL 100X/1.25(Spring, oil) (Work distance):0.36mm
Eyepieces tube
Trinocular, Inclination of 30˚.
Epi-fluorescent illumination system
3W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source, every monochromatic LED wave band: Green (520nm~530nm) Blue( 460nm~470nm)
Fluorescence filters: B(Blue) and G(Green).
Focus system
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
Nosepiece
Quadruple(Backward ball bearing inner locating)
Stage
Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
Transmitted illumination
system
Abbe condenser NA.1.25 Rack & pinion adjustable
Blue filter and Ground glass
Collector for LED illumination and integrated field diaphragm
3W high brightness white LED, brightness adjustable.

Optional accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div
1122010
Objective
Infinity plan achromatic objective PL 60X/0.80(Work distance):0.46 mm
2060160
Infinity plan achromatic fluorescent objective
PL FL10X/0.35(Work distance):2.37 mm
2610110
Nosepiece
Quintuple(Backward ball bearing inner locating)
032002
Filter
Green filter
115002
Yellow filter
115003
LED
Violet(390nm~400nm)
/
Ultraviolet(360nm~370nm)
/
Fluorescent filters
V(Violet)
/
UV(Ultraviolet)
/
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 Video output(380/520 TV line) USB output (0.42 M pixel)
800001
DV-2 With USB output (1.3M,2.0M,3.0M pixel)
800003
DV-3 With video output(380/520 TV line)
800005
ÊýÂëÏà»ú½ÓÍ·
Digital camera adapter
CANON(EF) NIKON( F)
820001
