Flourescence Microscope 관리자에게 문의하여 주세요


주문수량

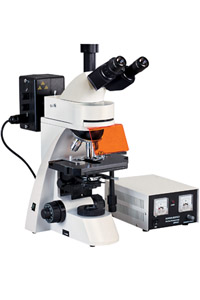

L3001

L3001 Epifluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan
achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology,
genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Features

▲ With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ 20W 6V halogen lamp with electronic dimmer

Standard configuration
Model
L3001
Eyepiece
Wide field WF10X(¦µ20mm)
Objective
Infinity plan achromatic Objectives PL 4X/0.10
Infinity plan achromatic Objectives PL 10X/0.25
Infinity plan achromatic Objectives PL 40X/0.65(Spring)
Infinity plan achromatic Objectives PL 100X/1.25(Spring, oil)
Eyepiece tube
Trinocular (Inclination of 30˚)
Focus system
Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece
Quadruple(Backward ball bearing inner locating)
Stage
Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)
Abbe condenser
N.A.1.25 Rack & pinion adjustable
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W Halogen lamp ,adjustable brightness
Reflected fluorescence system
Mercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:420~485nm
Fluorescence filter system G exciton wavelength:460~550nm
Fluorescence filter system UV exciton wavelength:330~400nm
Fluorescence filter system V exciton wavelength:395~415nm






















Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
WF16X(¦µ11mm)
1051016
Dividing 10X(¦µ20mm),0.1mm/Div
1121010
Objectives
Infinity plan achromatic 20X/0.40
2060120
Eyepiece tube
Binocular(Inclination of 30˚)
011104
Nosepiece
Quintuple(Backward ball bearing inner locating)
032002
Filter
Green filter
115002
Yellow filter
115003
Phase contrast unit
Eyepiece
Centering telescope
110002
Objectives
Infinity phase contrast plan achromatic 10X/0.25 PHP
2470110
Infinity phase contrast plan achromatic 20X/0.40 PHP
2470120
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
2470140
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
2470111
(PH-¢ñ) Turnplate phase contrast condenser
052001
(PH-¢ò) Turnplate phase contrast condenser
052004
Flashboard phase contrast condenser
052002
Pull board phase contrast condenser
052003
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
With USB & video output
800001
With USB output
800003
With video output
800005
Digital camera adapter
CANON digital camera adapter(A610,A620,A630,A640)
820001
Photograph unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
