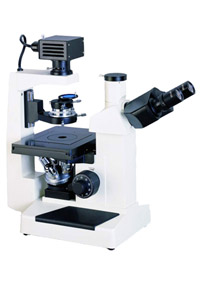

XDS-1

XDS-1 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance
condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal
instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical
treatment, agriculture and animal husbandry etc.

Features

Equipped with wide field eyepieces, long working distance plan achromatic objectives

Equipped with phase contrast unit, include long working distance condenser, phase contrast objective and centering telescope

Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm

6V 20W halogen lamp with brightness control

Standard configuration



Model
XDS-1
Eyepiece
Wide field WF10X(¦µ20mm)
Objective
Long working distance plan achromatic PL L 10X/0.25
Long working distance plan achromatic PL L 25X/0.40
Long working distance plan achromatic PL L 40X/0.60
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP
Eyepiece tube
Trinocular (Inclination of 30°, 100% image light for photography capable)
Focus system
Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece
Quadruple(Ball bearing inner locating)
Stage
Double layer mechanical(Size200mmX152mm,moving range:75mmX30mm)
Shelf of specimen
Match to install ¦µ68mm or 77mmX33mm culture utensil
Match to install ¦µ68mm culture utensil
Filter
Blue filter
Green filter
Frosted filter
Impellent style phase contrast unit
Centering telescope
10X Impellent style phase plate
Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm
Light source
6V 20W Halogen lamp with brightness control.
























Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
WF16X(¦µ11mm)
1051016
Dividing 10X(¦µ20mm), 0.1mm/Div
1120010
Nosepiece
Quintuple(Ball bearing inner locating)
032001
Condenser
Ultra long working distance,W.D.:70mm
050006
Filter
Yellow filter
115003
Impellent style phase contrast unit
Objectives
Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP
2430125
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP
2430140
Impellent phase plate
25X
112002
40X
112003
Sliding phase contrast unit
Objectives
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
2430310
Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
2430325
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
2430340
Sliding phase plate
10X
112004
25X/40X
112005
Condenser Rack & pinion adjustable, NA=0.4,working distance: 55mm
050007
CCD adapter
0.4X
812001
0.5X
812004
1X
812002
0.5X with dividing 0.1mm/Div
812003
Camera
DV-1(With USB & video output)
800001
DV-2(With USB output)
800003
DV-3(With video output)
800005
Digital camera adapter
CANON digital camera adapter(A610,A620,A630,A640)
821001
Photograph unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
