MC-980

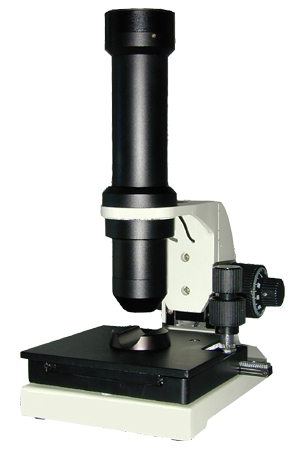

MC-980 Nail Fold Microcirculation Checking Instrument is a new type of optical & electronic instrument, equipped with achromatic
objective, new type LED illumination, high definition color sensor. It is mainly applied to nail fold microcirculation checking, no any hurt
and side-effect in the checking process. It is the ideal instrument for disease forepart diagnosis, health care etc.

Features

▲ Illumination using high light white LED, lower power and longer using life, over 10000 hours.

▲ The angle and brightness of illumination can be adjusted.

▲ 360°rotatable round stage and X-Y axis mobile mechanical stage for convenient and comfortable operation

▲ Built-in color CMOS sensor

Standard Configuration





Model
MC-980
Objective
Achromatic 4X/0.10
Color sensor
1/3"CMOS Horizontal resolution: 380 TV lines .
White balance: Automatic. Video output: 1Vp-p/ 75Ω.NTSC/PAL (Optional)
Power adapter
Input:220V /110V(Optional) output:9V
Movable stage
Mechanism moving stage(size: 130mmX118mm Moving size: 64mmX28mm)
Video cable
Standard Video cable, length:1.8m
LED illumination
High light LED, brightness and illuminate's angle adjustive



Optional accessories





Name
Sort/Technique parameter
NO.
Objective
Plan achromatic PL 5X/0.12
2040105
