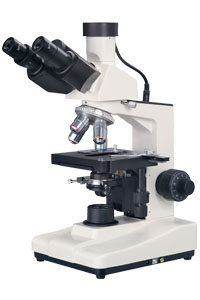

MC-1580

MC-1580 digital & video biological microscopes are equipped with achromatic objectives, wide field eyepieces and video trinocular. It provide
clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine,
agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Features

▲ With wide field eyepieces and achromatic objectives, the field of view is widely and clear

▲ Built-in color CCD sensor, with Video and USB output

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ 6V 20W halogen lamps with brightness control.

Standard Configuration

Model
MC-1580
Eyepiece
WF10X(¦µ18mm)
Objective
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Video trinocular
inside clear color 1/3”CCD sensor
USB2.0 Output, Max resolution: 720X576(PAL) 720X480(NTSC). White balance: Automatic
System requirement: Windows 2000/ Windows XP/Windows Vista.
VIDEO Output, Horizontal resolution: 520 TV lines, 1Vp-p/75Ω NTSC/PAL (optional).White balance: Automatic.
Accessories: Video cable, USB cable, Driver CD, User guide. Power supply adapter:12V DC
Focus system
Coaxial coarse/fine focus, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
Nosepiece
Quadruple(Frontward ball bearing inner locating)
Stage
Double layer mechanical ( Size:135mmX125mm, Move range: 75mmX35mm)
Abbe condenser
N.A.1.25 Rack & pinion adjustable
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control

























Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
Wide field WF16X(¦µ11mm)
1051016
Dividing 10X(¦µ18mm) 0.1mm/Div
1021010
Objective
Plan achromatic 4X/0.10
2040104
Plan achromatic 10X/0.25
2040110
Plan achromatic 40X/0.65(Spring)
2040140
Plan achromatic 100X/1.25(Spring, oil)
2040111
Nosepiece
Quintuple(Frontward ball bearing inner locating)
032001
Filter
Green filter
115002
Yellow filter
115003
