Video microscope 관리자에게 문의하여 주세요


주문수량

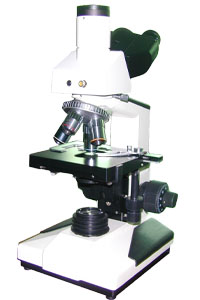

L1180

L1180 video biological microscopes are equipped with achromatic objectives, wide field eyepieces and video trinocular. It provide clear
image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine,
agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Features

▲ With wide field eyepieces and achromatic objectives, the field of view is widely and clear

▲ Built-in color CMOS or CCD sensor and video output

▲ Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm

▲ 6V 20W halogen lamp with brightness control

Standard configuration

Model
L1180
Eyepiece
WF10X(¦µ18mm)
Objective
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Video trinocular
Built-in clear color 1/3”CMOS sensor, horizontal resolution:380TV lines
White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional).
Power supply adapter:9V DC
Focus system
Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm
Nosepiece
Quadruple(Frontward ball bearing inner locating)
Stage
Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
Abbe condenser
N.A.1.25 Rack & pinion adjustable
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W Halogen lamp ,adjustable brightness
Attachment
Video cable, length:1.8M





















Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
Wide field WF16X(¦µ11mm)
1051016
Dividing 10X(¦µ18mm) 0.1mm/Div
1021010
Objective
Semi-plan achromatic SP 4X/0.10
2030104
Semi-plan achromatic SP 10X/0.25
2030110
Semi-plan achromatic SP 20X/0.40(Spring)
2030120
Semi-plan achromatic SP 40X/0.65(Spring)
2030140
Semi-plan achromatic SP 100X/1.25(Spring, oil)
2030111
Nosepiece
Quintuple(Frontward ball bearing inner locating)
032001
Filter
Green filter
115002
Yellow filter
115003
