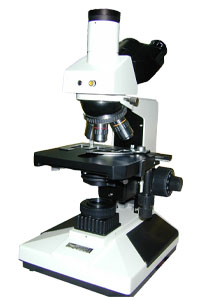

L2080
L2080 video biological microscopes are equipped with plan achromatic objectives, wide field eyepieces and video trinocular. It provide clear image,
wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and
industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Features
▲ With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
▲ Built-in color CCD sensor and video output
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
▲ Using Kohler illumination model, the illumination is 6V 20W halogen lamp with brightness control.
Standard configuration
Model
|
L2080
|
Eyepiece
|
WF10X(¦µ20mm)
|
Objective
|
Plan achromatic PL 4X/0.10
|
Plan achromatic PL 10X/0.25
|
Plan achromatic PL 40X/0.65(Spring)
|
Plan achromatic PL 100X/1.25(Spring, oil)
|
Video trinocular
|
Built-in clear color 1/3”CCD sensor, horizontal resolution:520TV lines
White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional). Power supply adapter:12V DC
|
Focus system
|
Coaxial coarse/fine focus, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
|
Nosepiece
|
Quadruple(Backward ball bearing inner locating)
|
Stage
|
Double layer mechanical ( Size:160mmX140mm, Move range: 75mmX50mm)
|
Abbe condenser
|
N.A.1.25 Rack & pinion adjustable
|
Filter
|
Blue filter
|
Frosted filter
|
Collector
|
With field diagram for halogen lamp
|
Light source
|
6V 20W halogen lamp with brightness control
|
Attachment
|
Video cable, length: 1.8M
|
Optional accessories
Name
|
Sort/Technique parameter
|
NO.
|
Eyepiece
|
Wide field WF16X(¦µ11mm)
|
1051016
|
Dividing 10X(¦µ20mm) 0.1mm/Div
|
1121010
|
Objective
|
Plan achromatic PL 20X/0.40
|
2040120
|
Nosepiece
|
Quintuple (Backward ball bearing inner locating)
|
|
Filter
|
Green filter
|
|
Yellow filter
|
|
|
