MC-1 MD-1

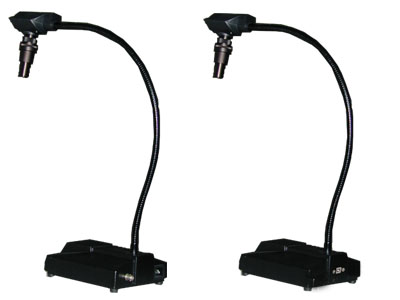

MC-1 / MD-1 Multifunctional Camera is equipped with color photography device and adjustable photography objective, can capture picture, text,
near or far scene. Matching relevant eyepiece adapter, it can be applied in biology microscope or stereo microscope, can display clear and balanced
dynamic image on TV or monitor, it's the ideal equipment for multimedia teaching, meeting, network communication and production demo etc.
Standard Configuration
|
Model
|
MC-1A
|
MC-1B
|
|
Color sensor
|
1/3¡åCCD Horizontal resolution: 380 TV lines
|
1/3¡åCCD Horizontal resolution: 520 TV lines
|
|
Video output
|
1Vp-p. 75Ω. NTSC/PAL(Optional)
|
|
White balance
|
Automatic
|
|
Input power
|
220V/110V(Optional)
|
|
Video cable
|
Standard Video cable, length:2.9m
|
|
Model
|
MD-1A
|
MD-1B
|
|
Color sensor
|
1/2” CMOS
|
|
Resolution
|
1.3 Mega pixels (1280X1024) Dynamic in real time USB2.0 Port.
|
2.0 Mega pixels (1600X1200) Dynamic in real time USB2.0 Port.
|
|
White balance
|
Automatic/Manual
|
Automatic
|
|
System Requirements
|
Windows 2000/XP/Vista
|
Windows 2000/XP
|
|
USB Cable
|
USB cable, length:1.8M
|
