Polarization Microscope 관리자에게 문의하여 주세요


주문수량

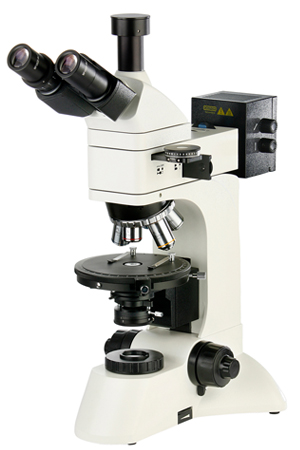

XPL-3230

XPL-3230 transmitted & reflected polarizing microscope is utilized polarizing light to observe and research the matter which have double
refraction features, the user can make single polarizing observation, orthogonal observation, conoscope observation. It is applied in geology,
chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid
crystal. It is the ideal instrument for scientific research and universities teaching demo.Features



Features
▲ Adopt infinity optical system and modularization function design.

▲ Infinity long W.D plan objectives, the field of view is widely and clear.

▲ Wide-field plan eyepieces: field number Ф22mm.

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

▲ Polarizing unit can be move out or into optical path, polarizer and analyzer can be rotated from 0°to 360°.

▲ Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener£¬Stage vertical
effective movement up to 30mm

▲ Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness adjustable.

▲ Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.

Standard Configuration
Model
XPL-3230
Eyepiece
Wide field WF10X(¦µ22mm)
Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div
Objective
Strain-free plan achromatic objective (no cover glass)
PL L5X/0.12 (Work distance):26.1 mm
PL L10X/0.25 (Work distance):20.2 mm
PL L40X/0.60£¨spring£©(Work distance):3.98 mm
PL L60X/0.70£¨spring£©(Work distance):3.18 mm
Reflected illuminating
system
6V30W halogen, brightness enable control.
Polarizer can be rotated 360°.
Analyzer can be rotatable 360° with scale and minimum vernier
Integrated field and aperture diaphragm.
Nosepiece
Quadruple (the center of nosepiece is adjustable )
Intermediate attachment
Puller type bertrand lens
Compensator
¦Ë, ¦Ë/4 and quarts wedge compensator.
Eyepiece tube
Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
Focus system
Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.

Optional accessories
Name
Sort/Technique parameter
NO.
Infinity objective
Strain-free plan achromatic objective (no cover glass)

PL L 20X/0.40(Work distance):8.80mm
2860120
PL L50X/0.70£¨spring£©(Work distance):3.68 mm
2860150
PL L80X/0.80£¨spring£©(Work distance):1.25 mm
2860180
PL L100X//0.85(spring) (Work distance):0.4 mm
2860111
Nosepiece
Quintuple(Backward ball bearing inner locating)
032004
Slide moving holder
Moving range: 30mmX25mm
116202
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©
800001
DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©
800003
DV-3 With video output£¨380/520 TV line£©
800005
Digital camera adapter
CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F)
820001
