Polarization Microscope 관리자에게 문의하여 주세요


주문수량

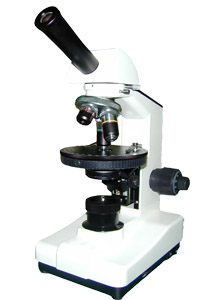

JPL135

JPL135 series polarization microscopes are utilized polarize light to observe and research the polarize characteristic of the matter which
have the double refraction .They can be used to medical inspection, such as the frame detail of the nerve fibre, the animal muscle, the plant
fibre and the crystal of the tooth, bone, hair and alive cell etc. It can be observe the fine frame of the biochemistry salt crystal that the fine
frame can't be observe for nature light.

Features

▲ Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clear.

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

▲ 6V 20W halogen lamp transmission illumination, adjustable brightness.

Standard Configuration

Model
JPL135
JPL135A
Eyepiece
Wide field WF10X(¦µ18mm)
Objective
Achromatic objectives 4X/0.10
Achromatic objectives 10X/0.25
Achromatic objectives 40X/0.65 (Spring)
Achromatic objectives 100X/1.25(Spring, oil)
Eyepieces tube
Binocular, Inclination of 30˚
Polarization analyzer
Sliding
Focus system
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
Nosepiece
Quadruple (Frontward ball bearing inner locating)
Stage
Rotatable stage(Diameter:¦µ120mm)
Double layer mechanical stage with (¦µ100mm) rotatable stage (Size:135mmX125mm Moving range:70mmX30mm)
Abbe condenser
NA.1.25 Rack & pinion adjustable
Filter
Blue filter
Frosted filter
Polarizer
360° rotatable stage
Collector
For illumination with halogen lamp With field diaphragm
Illumination unit
With polarizer,6V 20w, halogen lamp, adjustable brightness

























Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
Wide field WF16X(¦µ11mm)
1051116
Dividing 10X(¦µ18mm) 0.1mm/Div
1021010
Eyepieces tube
Monocular , 360˚rotatable, inclination of 30˚
010003
Trinocular, ,inclination of 30˚,observe and photograph at the same time
012001
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 With USB & video output
800001
DV-2 With USB output
800003
DV-3 With video output
800005
Photo unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Digital camera adapter
CANON(A610,A620,A630,A640)
820001
