Polarization Microscope 관리자에게 문의하여 주세요


주문수량

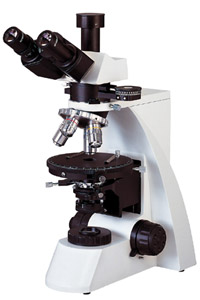

XPL-2

XPL-2 series polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features,
the user can make single polarizing view, orthogonal polarizing view, cone light view. They are applied in geology, chemicals, physic and
leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal.
They are the ideal instruments for scientific research and universities teaching demo.

Features

▲ Equipped with strain-free plan achromatic objectives(no cover glass) or infinity strain-free plan achromatic objectives(no cover glass)
and wide field eyepiece

▲ Nosepiece can adjust the center of objective

▲ Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm

▲ Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently

▲ Revolving round stage, 360°part scale and graduated in 1°increments, minimum resolution 6' when using vernier scale, center adjustable
and with tightener

▲ Illumination with 6V20W halogen lamp, adjustable brightness

Standard configuration



Model
XPL-2

Eyepiece
Wide field WF10X(¦µ18mm)
Division eyepiece 10X(¦µ18mm) 0.1mm/Div
Objective
Strain-free plan achromatic(no cover glass) PL L4X/0.10

Strain-free plan achromatic(no cover glass) PL L10X/0.25

Strain-free plan achromatic(no cover glass) PL L40X/0.60

Strain-free plan achromatic(no cover glass) PL L60X/0.75(Spring)

Eyepiece tube
Trinocular, ,inclination of 30˚,100% image light for photography capable
Intermediate attachmen
Polarization analyzer, 360° rotatable with scale and minimum vernier
Bertrand lens ,impellent style, center adjustable
¦Ë Compensator
¦Ë/4 Compensator
Quarts wedge compensator
Focus system
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
Nosepiece
Quadruple (Frontward ball bearing inner locating)
Stage
Rotatable stage, Diameter ¦µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener
Abbe condenser
NA.1.25 Rack & pinion adjustable
Polarizer
360° rotatable, with four scale is 0°,90°,180°, 270°
Filter
Frosted filter
Blue filter
Collector
For illumination with halogen lamp With field diaphragm
Illumination unit
With polarizer,6V 20w, halogen lamp, adjustable brightness

































Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
Wide field WF16X(¦µ11mm)
1051016
Eyepieces tube
Binocular, Inclination of 30˚
011009
Objective
Strain-free plan achromatic(no cover glass) PL L20X/0.40
2840120
Strain-free plan achromatic(no cover glass) PL L 50X/0.70
2850150
Strain-free plan achromatic(no cover glass) PL L80X/0.80
2850180
Strain-free plan achromatic(no cover glass) PL L100X/0.85 (Spring)
2850111
Nosepiece
Quintuple(Frontward ball bearing inner locating)
032004
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 With USB & video output
800001
DV-2 With USB output
800003
DV-3 With video output
800005
Photo unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Digital camera adapter
CANON(A610,A620,A630,A640)
820001
