Polarization Microscope 관리자에게 문의하여 주세요


주문수량

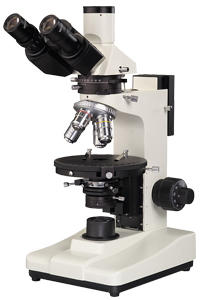

XPL-1503 XPL-1500 XPL-1530

Reflected polarization microscope Transmitted polarization microscope Reflected & Transmitted poolarization microscope

XPL-1500 series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have
double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied
in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical
polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.

Features

Transmitted, Reflected, transmitted/reflected illumination can be choosn

Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece

Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm

Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener£¬Stage vertical
effective movement up to 30mm


Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable


Standard Configuration

Model
XPL-1500 (Transmitted illumination)
XPL-1530 (Transmitted & reflected illumination)
XPL-1503 (Reflected illumination)
Eyepiece
Wide field WF10X (¦µ18mm)
Division eyepiece 10X (¦µ18mm) 0.10mm/div
Objective (center adjustable)
Strain-free plan achromatic objective
(cover glass:0.17mm) PL 4X/0.10
Strain-free plan achromatic objective (no cover glass) PL 5X/0.12
Strain-free plan achromatic objective
(cover glass:0.17mm)PL 10X/0.25
Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25
Strain-free plan achromatic objective(cover glass:0.17mm) PL 40X/0.65 (spring)
Strain-free plan achromatic objective (no cover glass)
PL L40X/0.60 (spring)
Strain-free plan achromatic objective(cover glass:0.17mm) PL 60X/0.85 (spring)
Strain-free plan achromatic objective (no cover glass)
PL L 60X/0.75 (spring)
Reflected illumination
Polarizer

Rotatable
Illumination
6V 20w, halogen lamp, adjustable brightness
Transmitted illumination
Polarizer
360°rotatable, have 0,90,180,270 four scale

Collector
For halogen lamp illumination
Illumination
6V 20w, halogen lamp, adjustable brightness
Abbe condenser
N.A. 1.25 Rack & pinion adjustable
Eyepieces tube
Trinocular, Inclination of 30˚, can send 100% of the image light to top photography port
Intermediate attachment
Built-in analyzer, can switch to normal observe or polarizing observe freely ,90° rotatable with scale, minimum retardation resolution 12'
Bertrand lens , impellent style , center adjustable
¦Ë compensator
¦Ë/4 compensator
Quarts wedge compensator
Nosepiece
Quadruple (Frontward ball bearing inner locating)
Focus system
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
Stage
Rotatable stage, Diameter ¦µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener





































Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
Wide field WF16X(¦µ11mm)
1051016
Objective
(center adjustable)
Strain-free plan achromatic objective(cover glass:0.17mm) PL 20X/0.40
2810320
Strain-free plan achromatic objective(cover glass:0.17mm) PL 100X/1.25 (Oil ,spring)
2810311
Strain-free plan achromatic objective(no cover glass) PL L 20X/0.40
2850320
Strain-free plan achromatic objective(no cover glass) PL L 50X/0.70
2850350
Strain-free plan achromatic objective(no cover glass) PL L 80X/0.80
2850380
Strain-free plan achromatic objective (Dry) (no cover glass) PL L 100X/0.85 (Spring)
2850311
Nosepiece
Quadruple (Frontward ball bearing inner locating)£¬adjust the center of objective
031007
Slide moving holder
Moving range: 30mmX25mm
116202
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 With USB & video output
800001
DV-2 With USB output
800003
DV-3 With video output
800005
Photo unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Digital camera adapter
CANON (A610,A620,A630,A640)
820001
