코드 크랙 시험기 Cord Winding Crack Tester JIS C3005 Cord Winding Crack Tester JIS C3005 |
 |
| Cord Winding Crack Tester JIS C3005 |
|
|

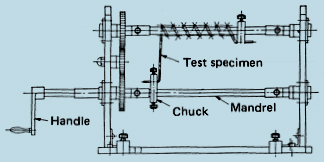

This tester is used to test the crack resistance of electric cord under low temperature. It is tested by winding the cord around a certain diameter of mandrel under a low temperature. Then, discharge the specimen and check if it cracks or not.
|
|
|
|
 |
| Specifications |
|
Type
|
A |
B |
|
•
|
Temperature
|
-30°C |
-50°C |
|
•
|
Chamber material |
SUS #304
|
|
•
|
Chamber size |
50x60x60 cm
|
|
•
|
Number of mandrels |
3 sets (each mandrel contains 3 sizes of samples)
|
|
•
|
Number of specimen |
9 pieces
|
|
•
|
Power |
1ø, 220V, 50/60Hz
|
|
•
|
Dimension |
148x83x850 cm
|
|
•
|
Weight (approx.) |
300 kgs
|
|
