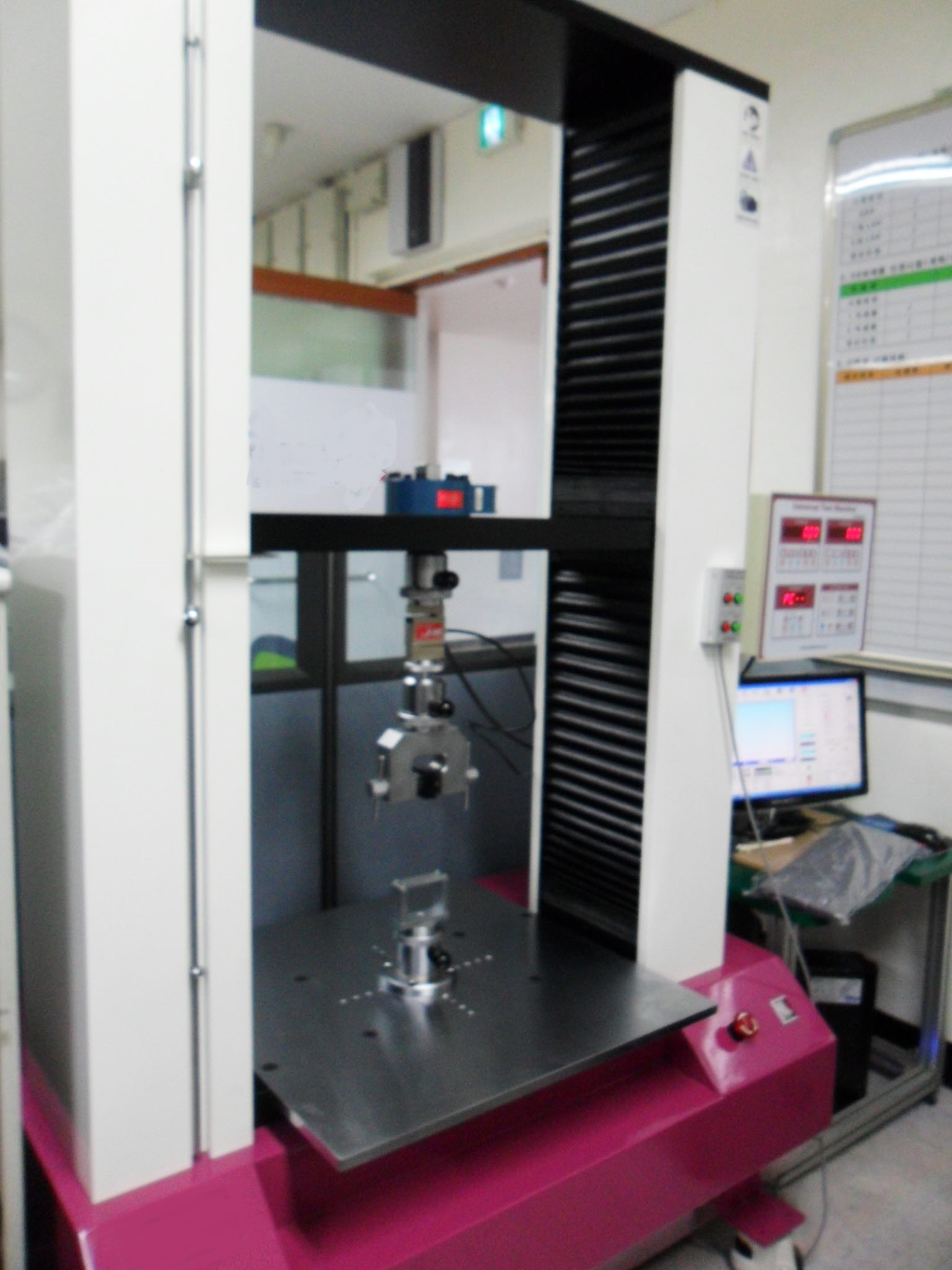

만능 재료 시험기 (Universial Testing Machine) 만능 재료 시험기 (max force : 30Tonf) |
 |

[Specification] |
|
|
|
|
|
|
Load Cell |
: |
30ton (협의 후 변경가능:Max 30ton) |
|
|
Load Range |
: |
20ton/30 (ton) |
|
|
|
|
Load Resolution |
: |
0.0002 |
|
|
|
|
|
Colum Type |
: |
Twin |
|
|
|
|
|
Table Area (W ×D mm) |
: |
550 ×550 |
|
|
|
|
Travel ( H mm) |
: |
1350 (No Grip) |
|
|
|
|
Grip for Compression Test(mm) |
: |
Ø100 (가압판 사이즈) |
|
|
|
Control |
|
: |
Indicator (LCD Digital Display) |
|
|
|
|
: |
분해능1/50000 |
|
|
|
|
Driving System |
: |
Ball Screw (Japan) Type |
|
|
|
Crosshead Speed |
: |
App. 0.01 ~ 600mm/min |
|
|
|
Motor |
|
: |
AC Servo Motor & Reducer (Japan) |
|
|
Auto Funtion |
: |
Auto Start,End,Return System |
|
|
Safety Device |
: |
Emergency Stop, Limit (up-down,Load) |
|
|
|
|
,Power Breaker |
|
|
|
|
Power |
|
: |
AC220V,50/60Hz |
|
|
|
|
Total Weight (App.) |
: |
500kg |
|
|
|
|
|
Dimension (mm) |
: |
900×600×1900 |
|
|
|
|
[포함옵션] |
|
|
|
|
|
|
|
Software |
: |
Window (RS232 or USB Port) |
|
|
|
|
|
귀사 주문형 (구체적으로 진행 시 협의 필요) |
|
|
|
|
시험항목 (인장,인열,박리,압축,반복,정하중시험 외) |
|
