경도계 Hardness Tester 필요한 내용은 관리자에게 문의하여 주세요


주문수량







PRODUCT INFORMATION

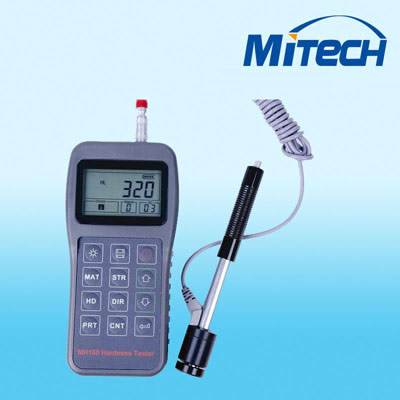

Model MH180 hardness tester is develop model of HL200, its in durable metal case, hardness scales are convertable among hardness units: HRB, HRC, HV, HB, HS, HL ;attachable thermal mini-printer, fast on-site print;software data and upperlower limits setting and sound alarm; large storage capacity.


SPECIFICATIONS



Measuring Range
HLD(170-960)
Impact Derections
up,down,horizontal,slanting up,slanting down
Measuring materials
steel and cast steel, cold work tool steel, stainless steel,grey cast iron, nodular cast iron,cast aluminium allorys,brass(coppper-zinc alloys), Bronze(copper-alluminium alloys/copper-tin alloys),wrought copper alloys


Hardness scales
Leeb, Brinell, Rockwell A,B,C, Vicker, Shore
Display
128*64 digital matrix LCD
Memory
500 group(32 every group)
Work voltage
3V( 2 AA alkaline battaries)
Interface port
RS232
Dimensions
132mm*76mm*33mm
Weight
345g
Continuous working period
100 hours (with backlight off)



ACCURACY AND REPEATABILITY OF DISPLAYED VALUE




No. Type of impact device Hardness value of Leeb standard hardness block Erro of displyed value Reapeatability of displayed value
1
D

760±30HLD
530±40HLD

±6 HLD
±10 HLD

6HLD
10HLD
2
DC
760±30HLD
530±40HLD
±6 HLDC
±10 HLDC
6HLD
10HLD
3
DL
878±30HLD
736±40HLD
±12 HLDL
12HLDL
4
D+15
766±30HLD
544±40HLD
±12 HLD+15
12HLD+15
5
G
590±40HLD
500±40HLD
±12 HLG
12HLG
6
E
725±30HLD
508±40HLD
±12 HLE
12HLE
7
C
822±30HLD
590±40HLD
±12 HLC
12HLC



STANDARD DELIVERIES




No Items Quantity
1 Main unit 1
2 D type imapact device 1
3 Test block with HLD value 1
4 Cleaning brush 1
5 Instruction manual 1
6 Warranty card 1
7 Carrying case 1
8 Batteriry 1





OPTIONAL DELIVERIES




No Items Quantity
1 Other types of cleaning brush 1
2 Other types of impact devices 6
3 Tool for install imapct ball 1
4 Other types of support ring 1
5 Other types of imapct ball/body 1
6 Mini-printer 1
