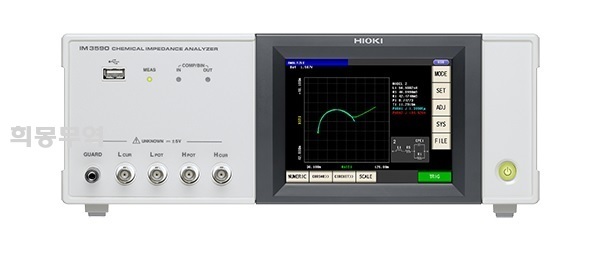

데스크형전력분석기 MODEL : IM3590 ( HIOKI ) 이온특성 및 용액저항이 측정가능한 1mHz~200Khz의 넓은 대역폭 |
|
데스크형전력분석기
MODEL : 3590 Chemical Impedence Analyzer
■ 제품특징
· 이온특성 및 용액저항이 측정가능한 1mHz~200Khz의 넓은 대역폭
· 1대의 기기로 LCR 및 SWEEP 측정을 연속적으로 빠르게 측정
· 전지의 무부하 상태의 내부 임피던스 측정가능
· 2ms의 고속 측정에서 SWEEP 측정
· 기본 정확도 ±0.05 %, 부품 검사에서 연구개발까지 사용가능
· 전기화학 요소 및 재료의 등가회로 분석과 콜-콜 플롯을 위한 LCR 임피던스 측정 지원
■ 제품사양
Measurement modes
|
LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)
|
Measurement parameters
|
Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, T, σ (conductivity), ε (dielectric constant)
|
Measurement range
|
100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
|
Display range
|
Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only
θ : ±(0.000° to 999.999°), D : ±(0.000000 to 9.999999)
Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)
T : -10.0°C to 99.9°C
|
Basic accuracy
|
Z : ±0.05%rdg. θ: ±0.03°
|
Measurement frequency
|
1 mHz to 200 kHz (1 mHz to 10 Hz steps)
|
Measurement signal level
|
Normal mode:
V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Low impedance high accuracy mode:
V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
CC mode:10 μA to 100 mArms, 10 μArms steps
|
Output impedance
|
Normal mode: 100 Ω
Low impedance high accuracy mode: 25 Ω
|
Display
|
5.7-inch color TFT, display can be set to ON/OFF
|
Measurement time
|
2 ms (1 kHz, FAST, display OFF, representative value)
|
Functions
|
DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function
|
Interface
|
EXT I/O (Handler), USB communication (high-speed), USB memory Optional: Choose 1 from RS-232C, GP-IB, or LAN
|
Power supply
|
100 to 240 V AC, 50/60 Hz, 50 VA max.
|
Dimensions, mass
|
330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
|
Supplied accessories
|
Power cord ×1, Instruction Manual ×1, CD-R (Communication Instruction Manual and Sample Software [Communications Control, Accuracy Calculation, and Screen Capture Functionality] ) ×1
|
|
