디지털 토크 메타 Digital Torque Meter 관리자에게 문의하여 주세요


주문수량









Function:

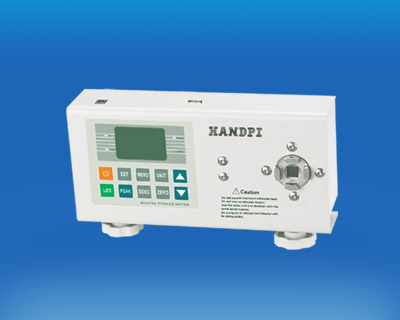

HT-10~200 Digital Torque Meter is an intellectualized measure instrument, which is specially designed for testing and measuring different of torque. HT is main used for kinds motorized or air screwdriver,torque screwdriver, torque wrench, torque driver, measure and calibrate torque testing,and parts fracture test. It is widely applied in electric industry, machinery industry, light industry, automobile industry, scientific research and so on.



Specification:
high accuracy and resolution;
peak hold function;
peak automatic clearance function;
Tolerance limit(up and down limit);
3 units available: N.m、kgf.cm、lbf.in;
reset acceleration of gravity function;
large memory;
inductive background light;
USB output; Match synchronous analysis software;



Parameter:
Model HT-10 HT-20 HT-50 HT-100 HT-200
Measurement range at peak (N.m )

0.0005~1

0.001~2 0.002~5 0.005~10 0.01~20
Measurement mode Track、Peak 、Auto Peak
Accuracy ±0.5%Fs
Power(charging time) 1.5VNiHM cell×6 or rechargeable battery (recharging 6 hours)
Specified charger Input:AC220V~240V Output: DC9V400mA
Continuous use at full charge 20 hours
Battery life Recharging 300 times
Dimensions/Weight W×H×D 230mm×65mm×120mm 2Kg
